Sliding Mitre Saw

TC-SM 2534/1 Dual

Item no: 4300395 EAN: 4006825644890

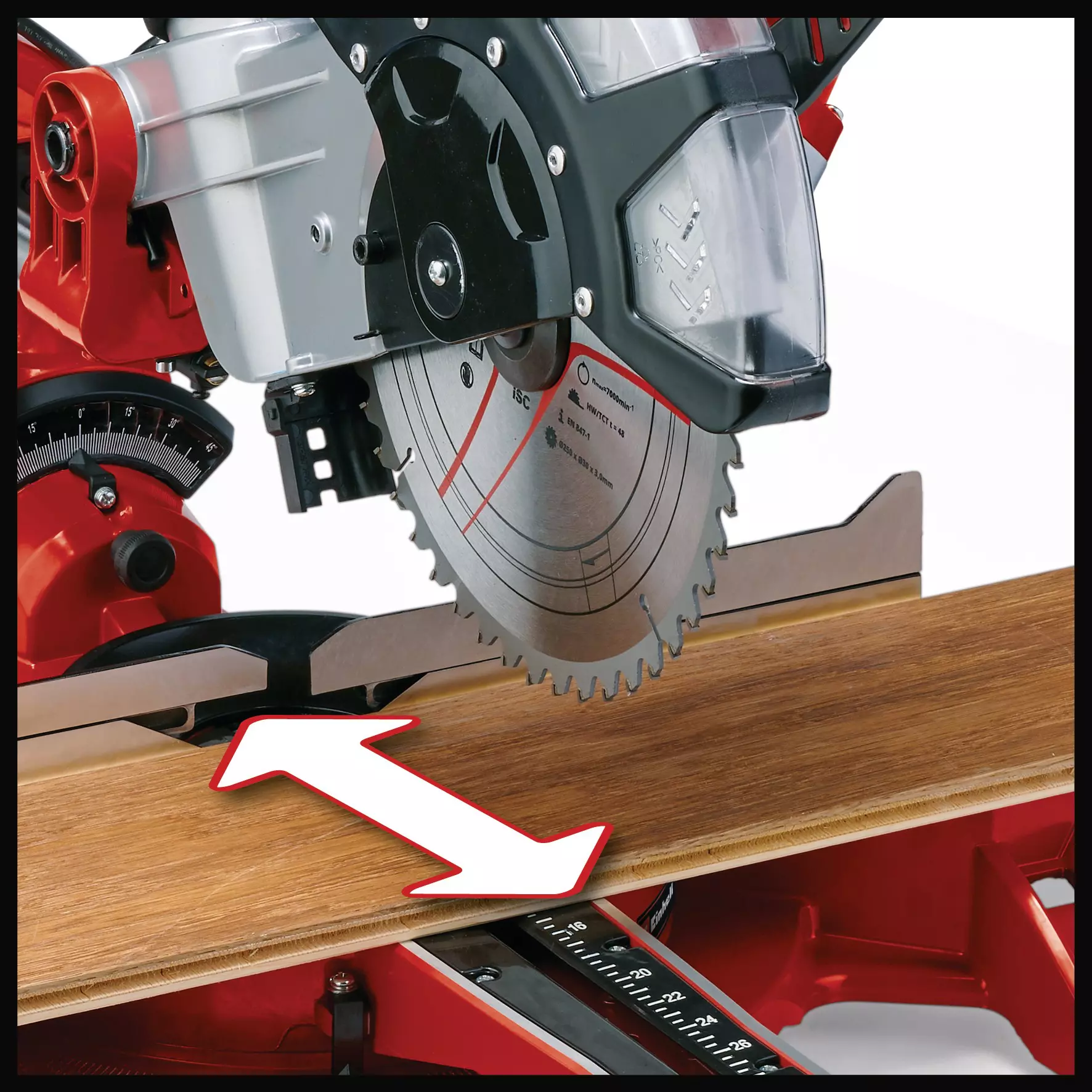

  • Integrated drag function for wide workpieces up to 340 mm
  • Turntable with precise angle setting for angular cuts
  • Saw head tilts to the left and right for mitre cutting
  • Includes laser (mains-powered) for precise guidance while cutting
  • Supports for sawing long workpieces on both sides
  • Workpiece stop with rails adjustable to the left and right
  • High-grade carbide-tipped precision saw blade with 48 teeth
  • Clamping device for holding the workpiece securely in position
  • Includes sawdust bag to keep the workplace clean
  • Dust funnel behind saw blade to remove sawdust more effectively
See more information
Show less information
Total 529.99441.658 BGN*
Sliding Mitre Saw
TC-SM 2534/1 Dual
Item no: 4300395 EAN: 4006825644890
  • Integrated drag function for wide workpieces up to 340 mm
  • Turntable with precise angle setting for angular cuts
  • Saw head tilts to the left and right for mitre cutting
  • Includes laser (mains-powered) for precise guidance while cutting
  • Supports for sawing long workpieces on both sides
  • Workpiece stop with rails adjustable to the left and right
  • High-grade carbide-tipped precision saw blade with 48 teeth
  • Clamping device for holding the workpiece securely in position
  • Includes sawdust bag to keep the workplace clean
  • Dust funnel behind saw blade to remove sawdust more effectively
See more information
Show less information
einhell-classic-sliding-mitre-saw-4300395-productimage-001
Article description

The TC-SM 2534/1 Dual is a drag, crosscut and mitre saw for cutting wood, laminated panels and plastic. The saw head can be tilted continuously to the left and right for high flexibility in setting mitres on two sides. An integrated, mains-powered laser marks the cutting line, enabling the workpiece to be positioned quickly and exactly. The high-quality turntable of the TC-SM 2534/1 Dual comes with an exact angle adjustment facility for angular cuts which can be latched single handedly in various positions. The integrated drag function enables you to cut particularly wide workpieces. Workpiece supports on two sides, a clamping device for reliable securing of the workpiece and a workpiece stop with rails that adjust to the left and right enable safe, precise operation. The table insert is equipped with a practical scale for reading off the workpiece width. The high-grade carbide-tipped precision saw blade guarantees clean, powerful cutting results. The sawdust bag keeps the workplace clean, while the dust funnel behind the saw blade is another big step up in the effectiveness of sawdust removal. A transport brace is provided for easy and safe mobility.

See more information
Show less information

Technical details

% power S625 %
Cutting depth 45° x 45°42 mm
Cutting depth 90° x 90°75 mm
Cutting width 45° x 45°240 mm
Cutting width 90° x 90°340 mm
Idle speed max.4000 min^-1
Max. swivel range (saw head)45 °
Max. swivel range (saw table)47 °
Min. swivel range (saw head)45 °
Min. swivel range (saw table)47 °
Number of saw blade 1 teeth48 pcs
Power S62350 W
Product weight14.3 Kg
Saw blade 1 diameter250 mm
Saw blade holder diameter30 mm

Extensive cutting and mitre work? We've got the right tool for you!

Equipped with a powerful 2,350 Watt motor, the Einhell sliding mitre saw reliably cuts a variety of materials such as wood, laminated panels, and plastics. The mitre saw features easy-to-read scales on both the head and swivel table. A clamping device securely holds the workpiece for safety. Changing the saw blade is effortless with the spindle lock.

Extensive-cutting-and-mitre-work-Weve-got-the-right-tool-for-you

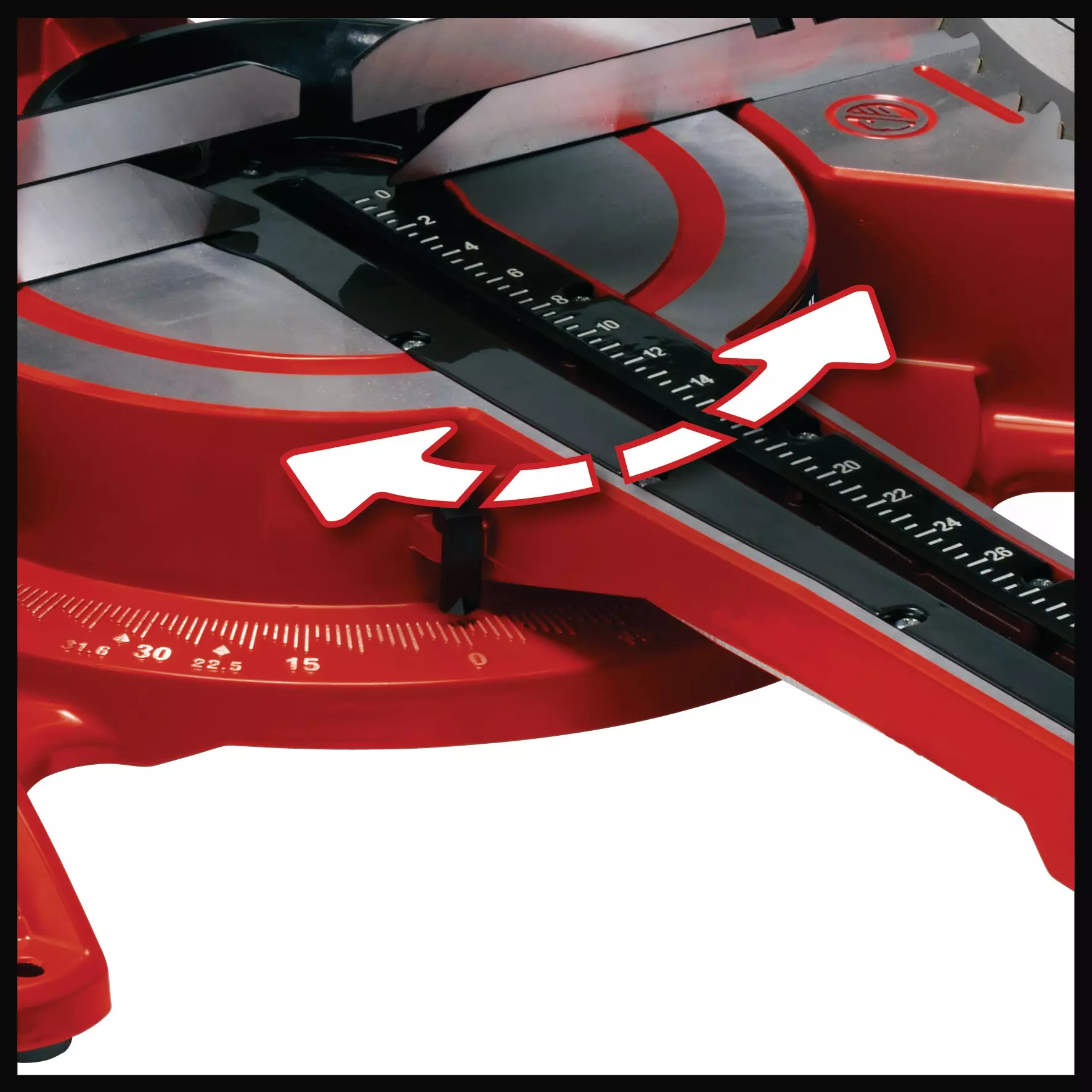

Always-at-the-correct-angle

Always at the correct angle

The robust die-cast aluminum swivel table features locking positions for common angles used in DIY projects.

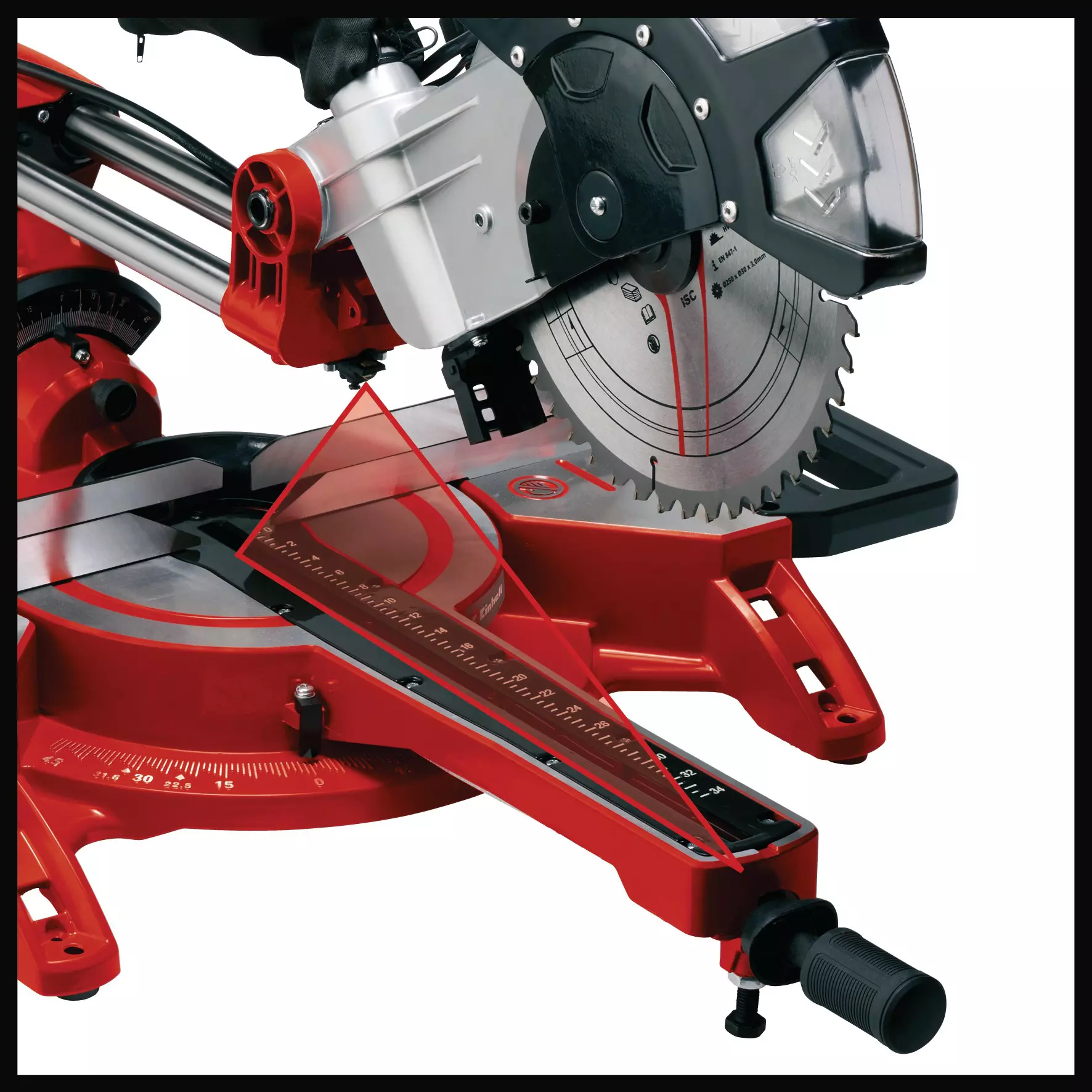

Precise-in-every-situation

Precise in every situation

The mains-powered laser marks the cutting line: This allows the workpiece to be positioned precisely where the cut needs to be made.

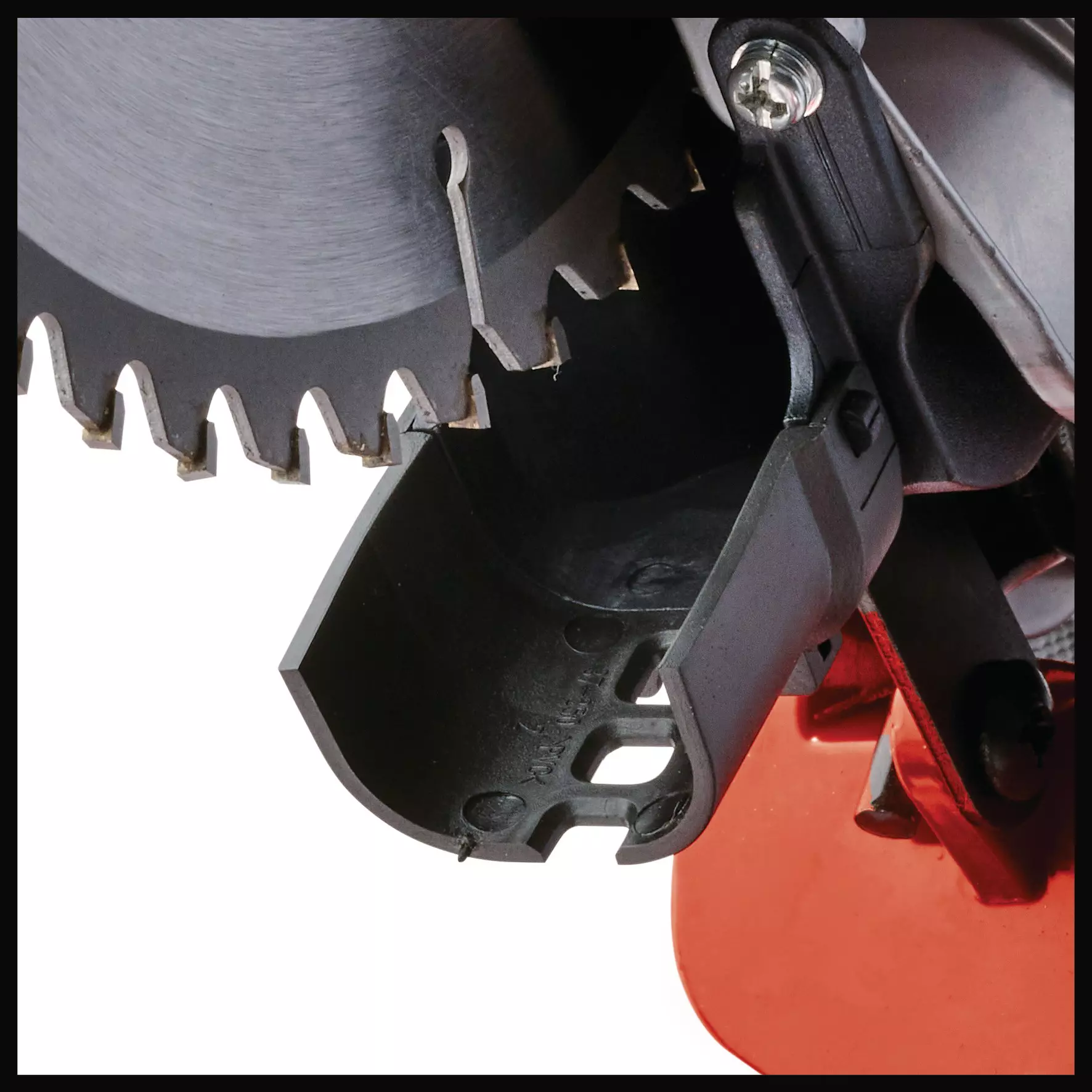

Free-from-dust-and-debris

Free from dust and debris

The dust collection bag keeps the workplace clean, while the dust funnel behind the saw blade improves sawdust removal.

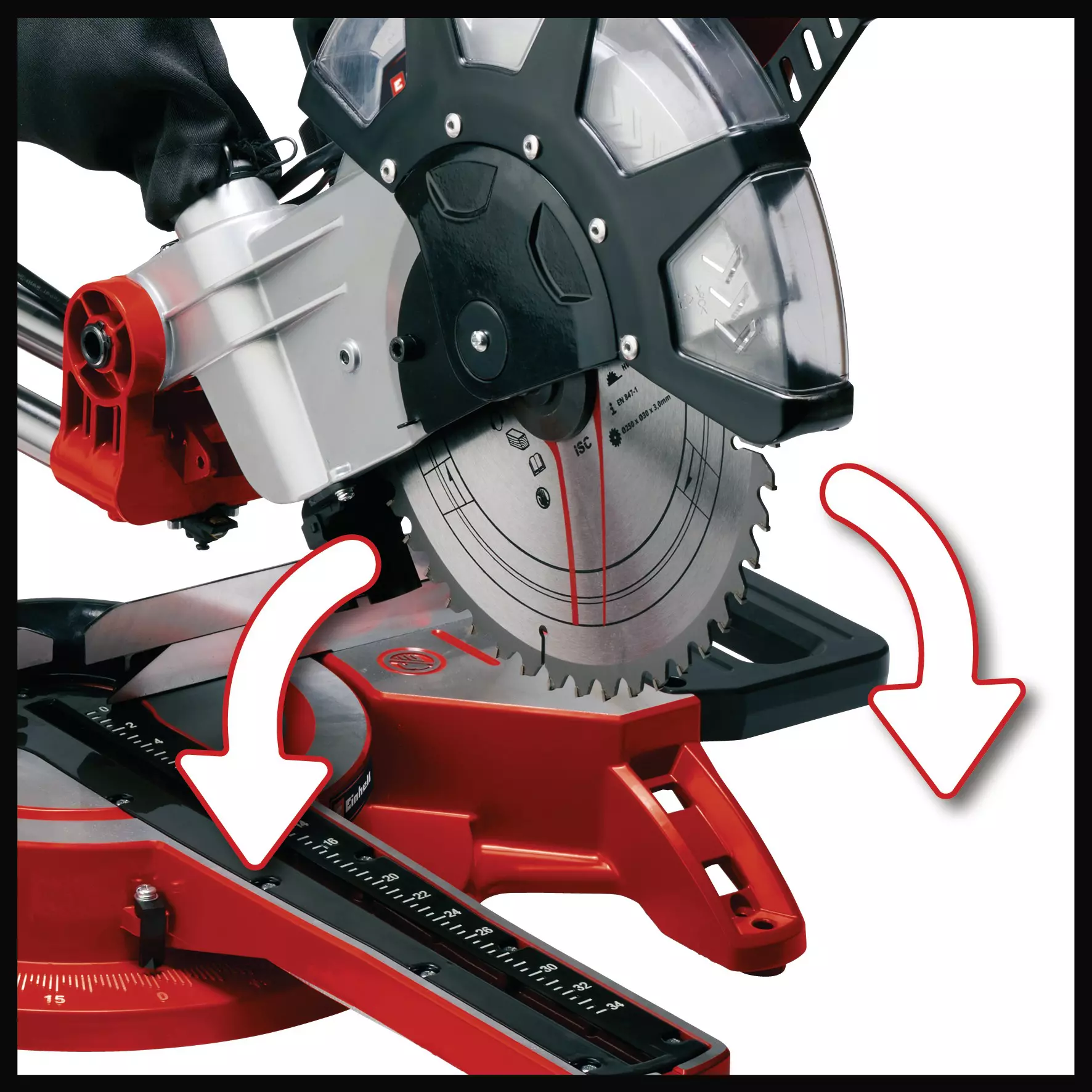

Tiltable-saw-head

Tiltable saw head

The saw head tilts left and right from -45° to 45°: Large workpieces do not need to be rotated and can be processed in any position.

Extensive cutting and mitre work? We've got the right tool!

The Einhell sliding mitre saw TC-SM 2534/1 Dual is equipped with a high-quality carbide saw blade, making it perfectly suited for extensive cutting and mitre work in home, workshop, or garage.

Einhell customer service can be reached directly. We take care of your requests for product information, spare parts and repairs.We support you with all questions around your product - before, during and after the purchase.
